SDL C Raycasting Engine¶
Overview¶
SDL C Raycasting is a lightweight C-based raycasting engine inspired by the classic Wolfenstein 3D, built with SDL2 and SDL2_image. This project demonstrates fundamental 3D graphics programming using classic raycasting techniques.
Features¶

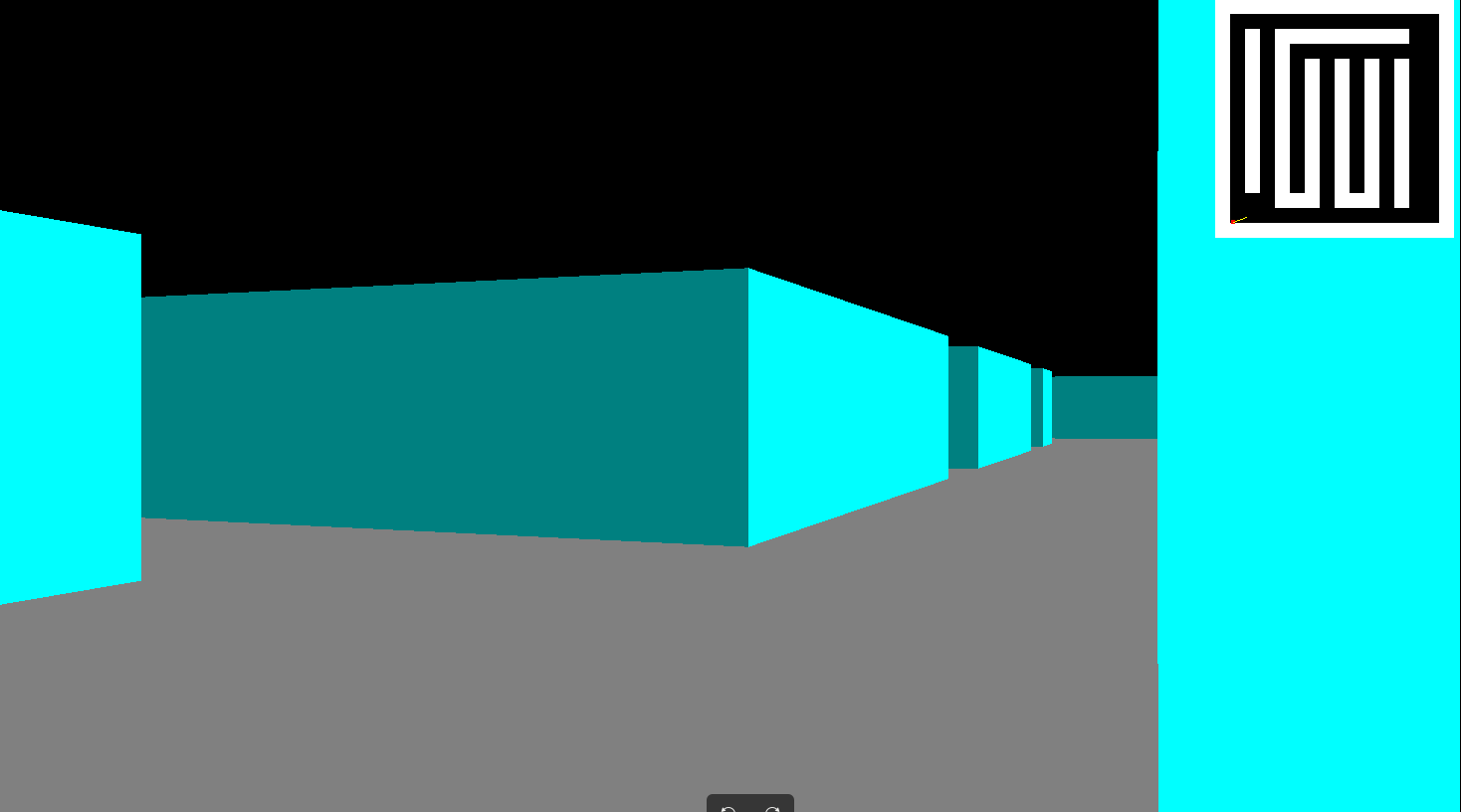

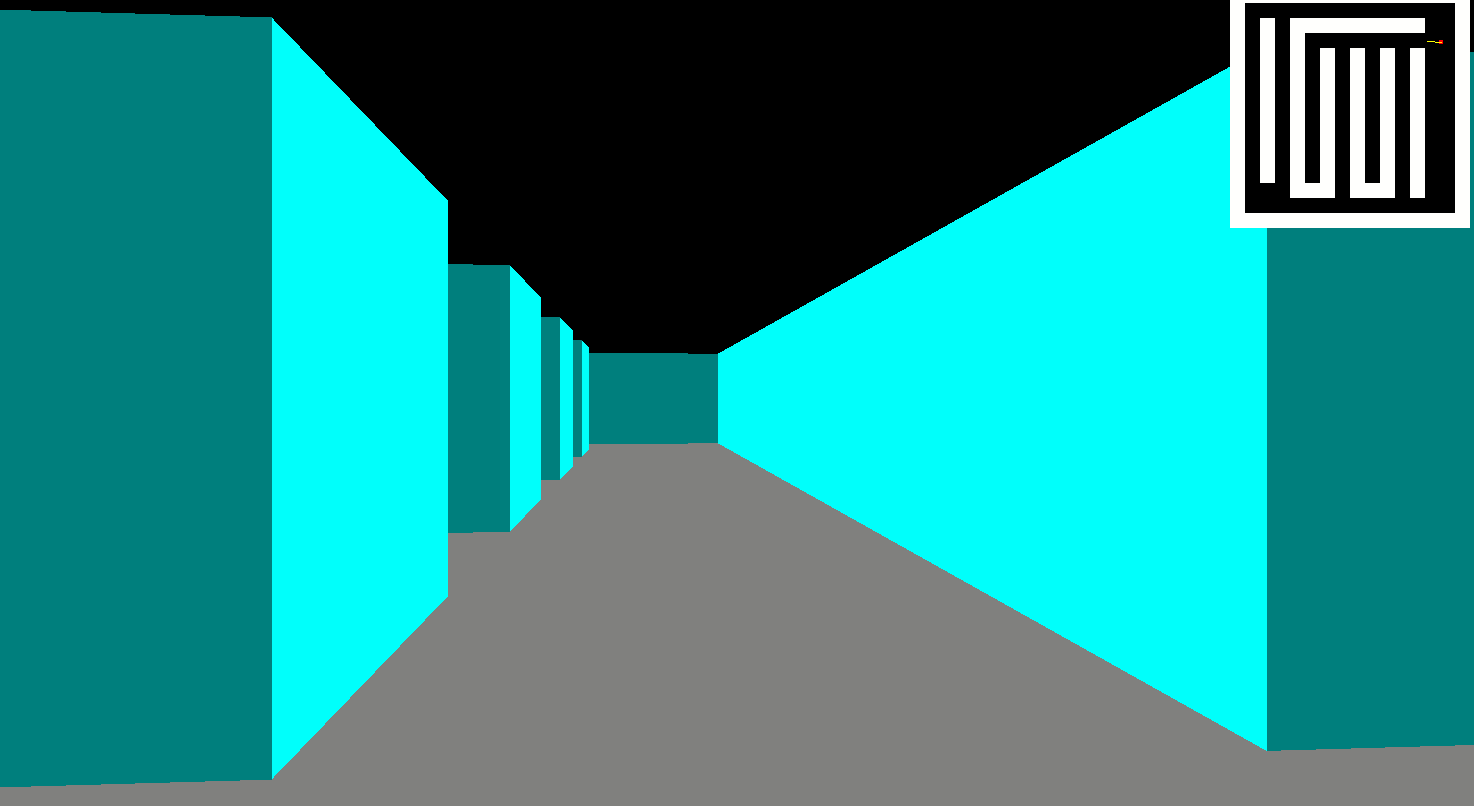

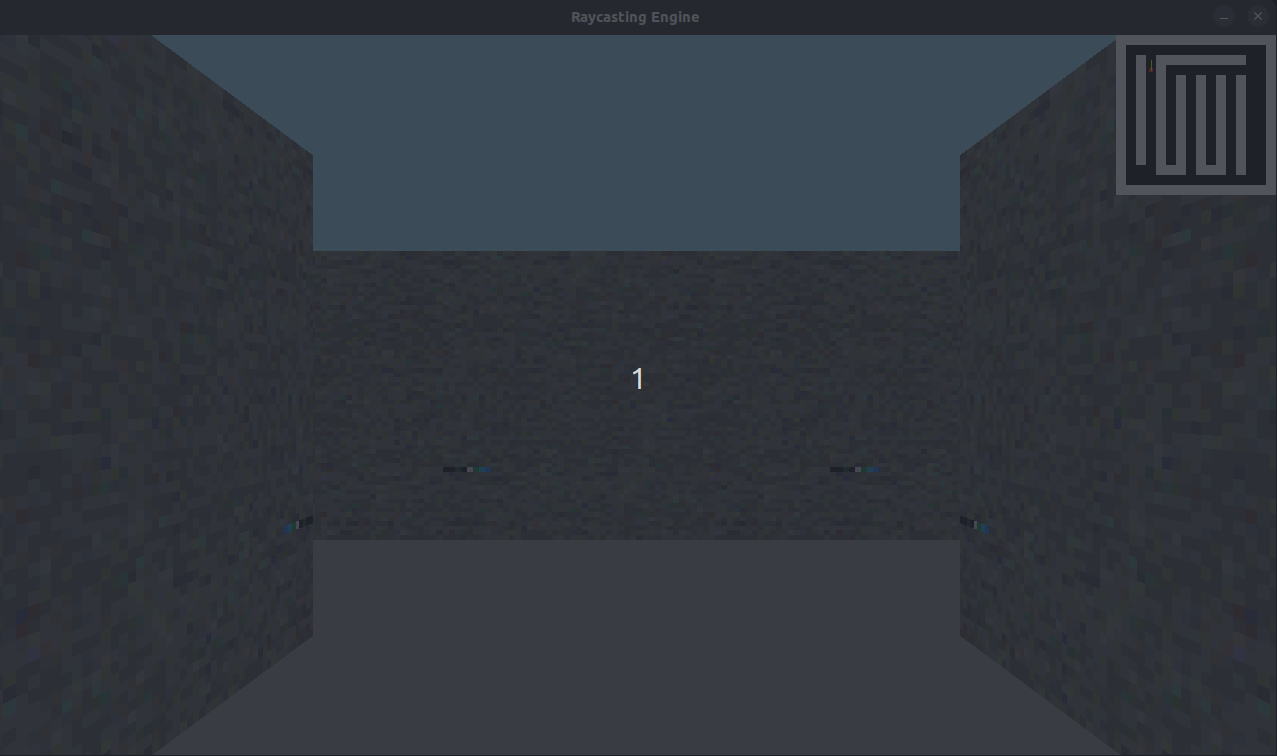

- Wolfenstein 3D-style rendering

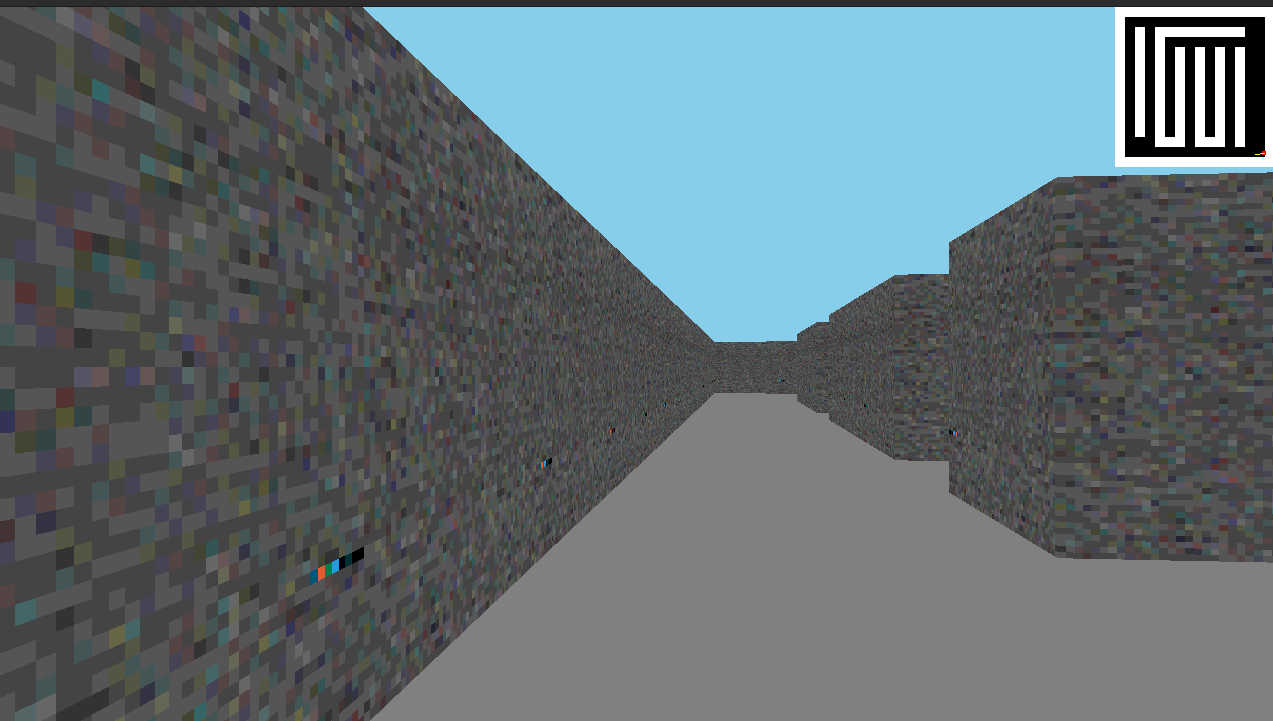

- Map drawing with textured walls
- Basic movement and camera rotation
- Configurable window size
- Proper resource cleanup (textures, renderer, window)
- SDL2 and SDL2_image integration
Requirements¶
- SDL2 development libraries
- SDL2_image development libraries
- GCC or compatible C compiler
Installation¶
Ubuntu/Debian:
sudo apt install libsdl2-dev libsdl2-image-dev
macOS (Homebrew):
brew install sdl2 sdl2_image
Building & Running¶
# Clean build artifacts
make clean
# Build the project
make
# Run the game
./game
For macOS with Homebrew SDL2 not in standard paths:
make CFLAGS="-I/opt/homebrew/include/SDL2" LDFLAGS="-L/opt/homebrew/lib"
Controls¶
| Key | Action |
|---|---|
W / S |
Move forward / backward |
A / D |
Rotate left / right |
ESC |
Exit game |
Technical Details¶
- Language: C
- Graphics Library: SDL2 + SDL2_image
- Rendering Method: Raycasting
- License: MIT
Troubleshooting¶
SDL.h not found: Install SDL2 and SDL2_image development packages, verify include paths
Linker errors: Ensure shared functions are declared in headers with extern and defined in exactly one .c file
